Fryma
Fryma-Maschinen AG MZMVK150

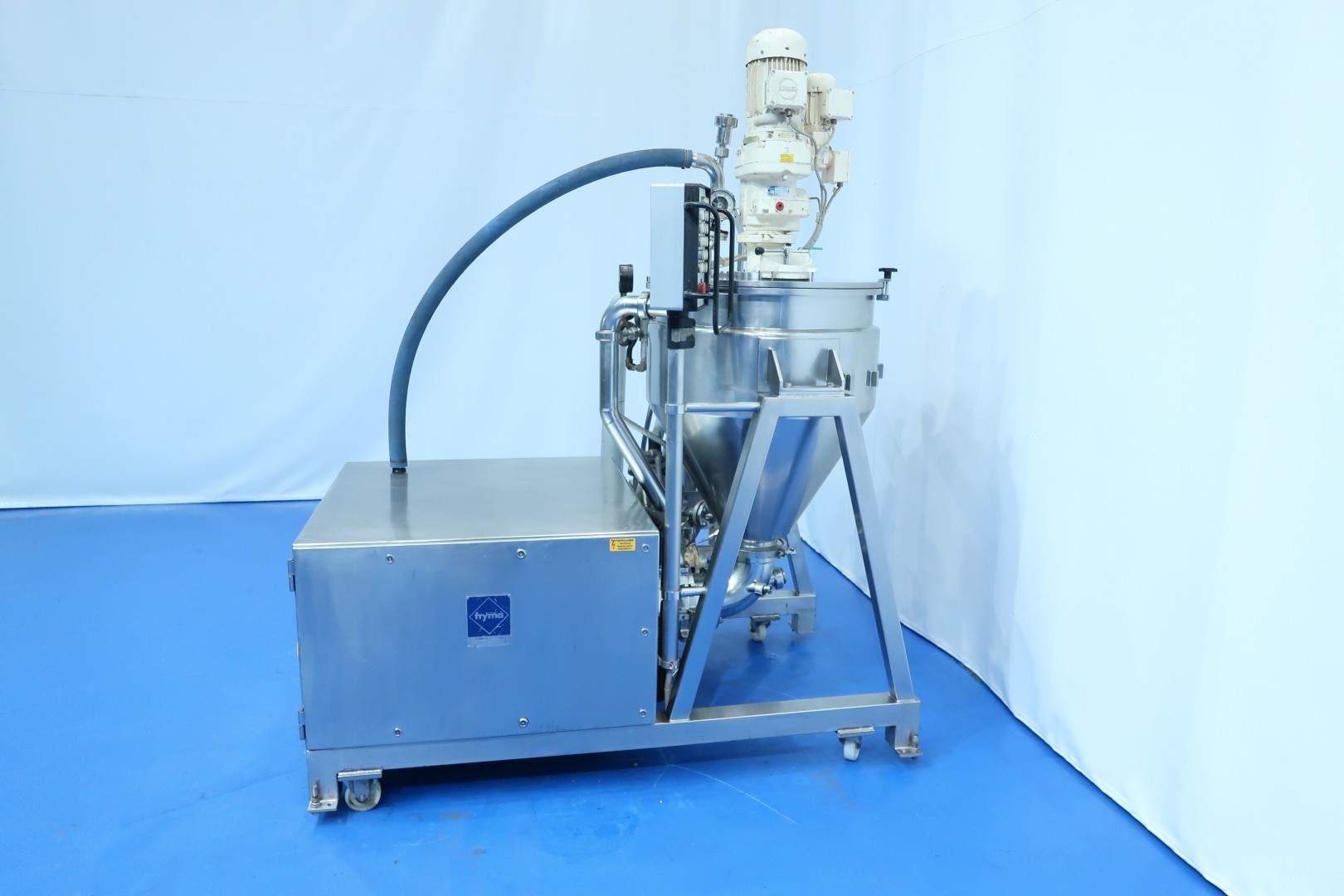

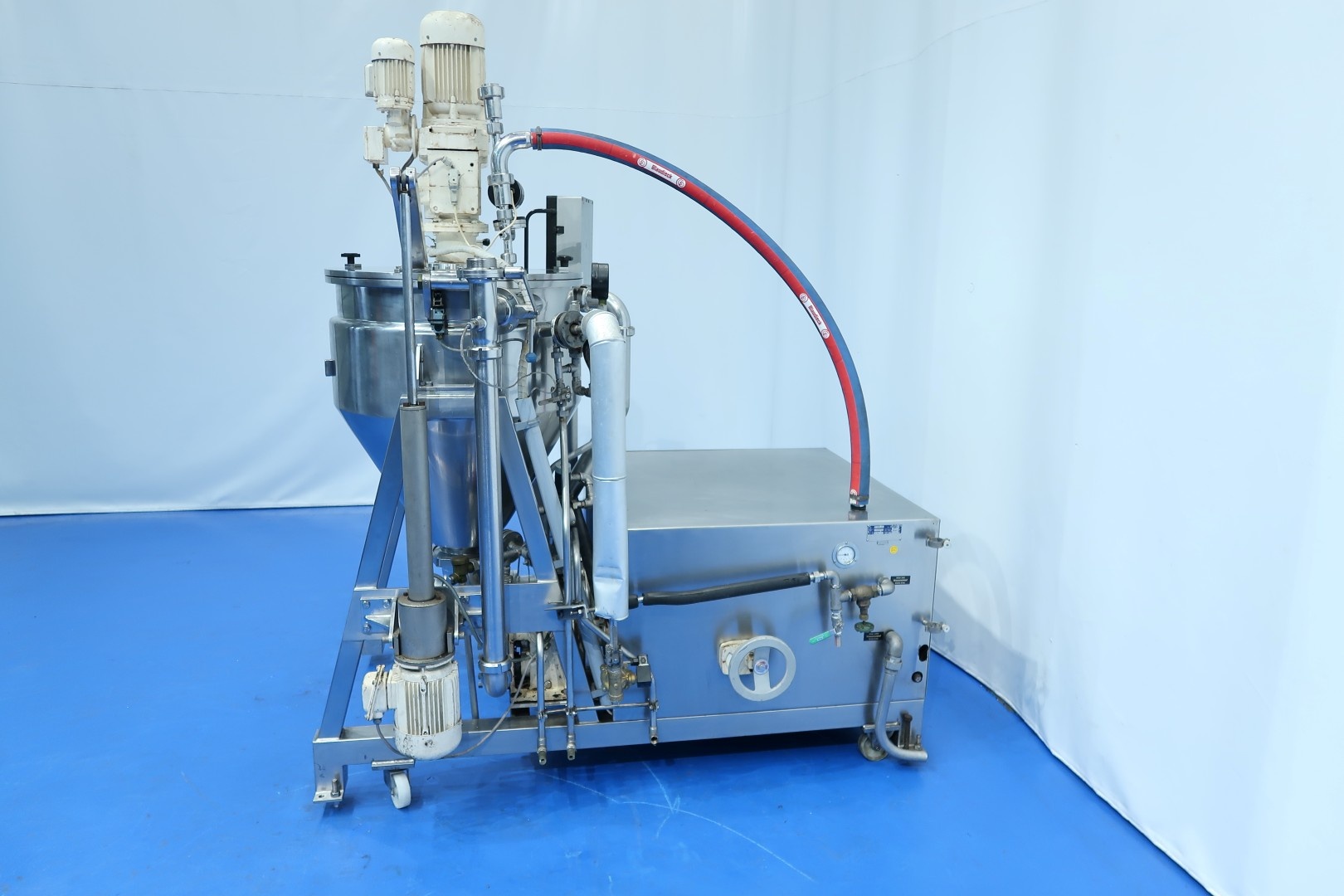

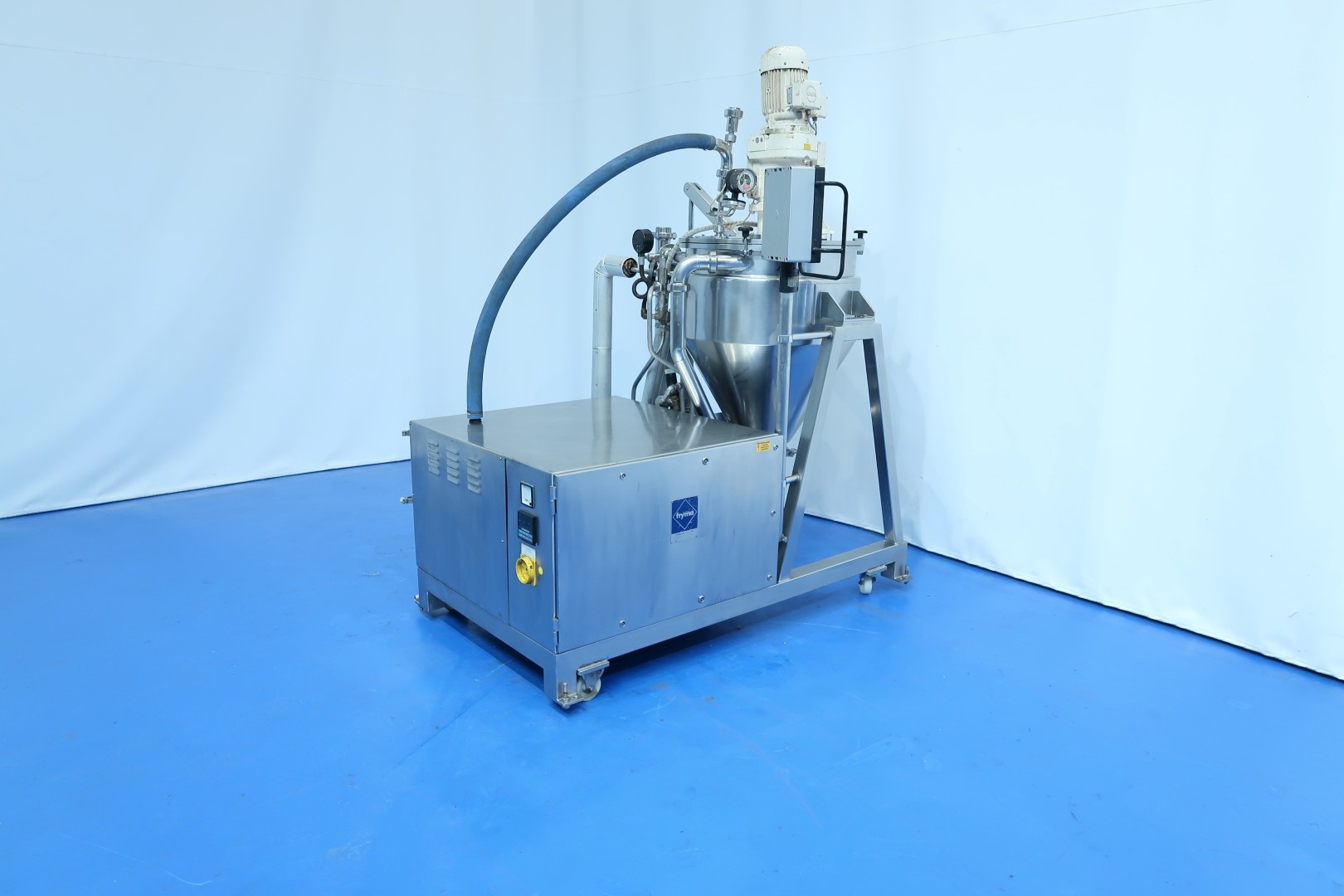

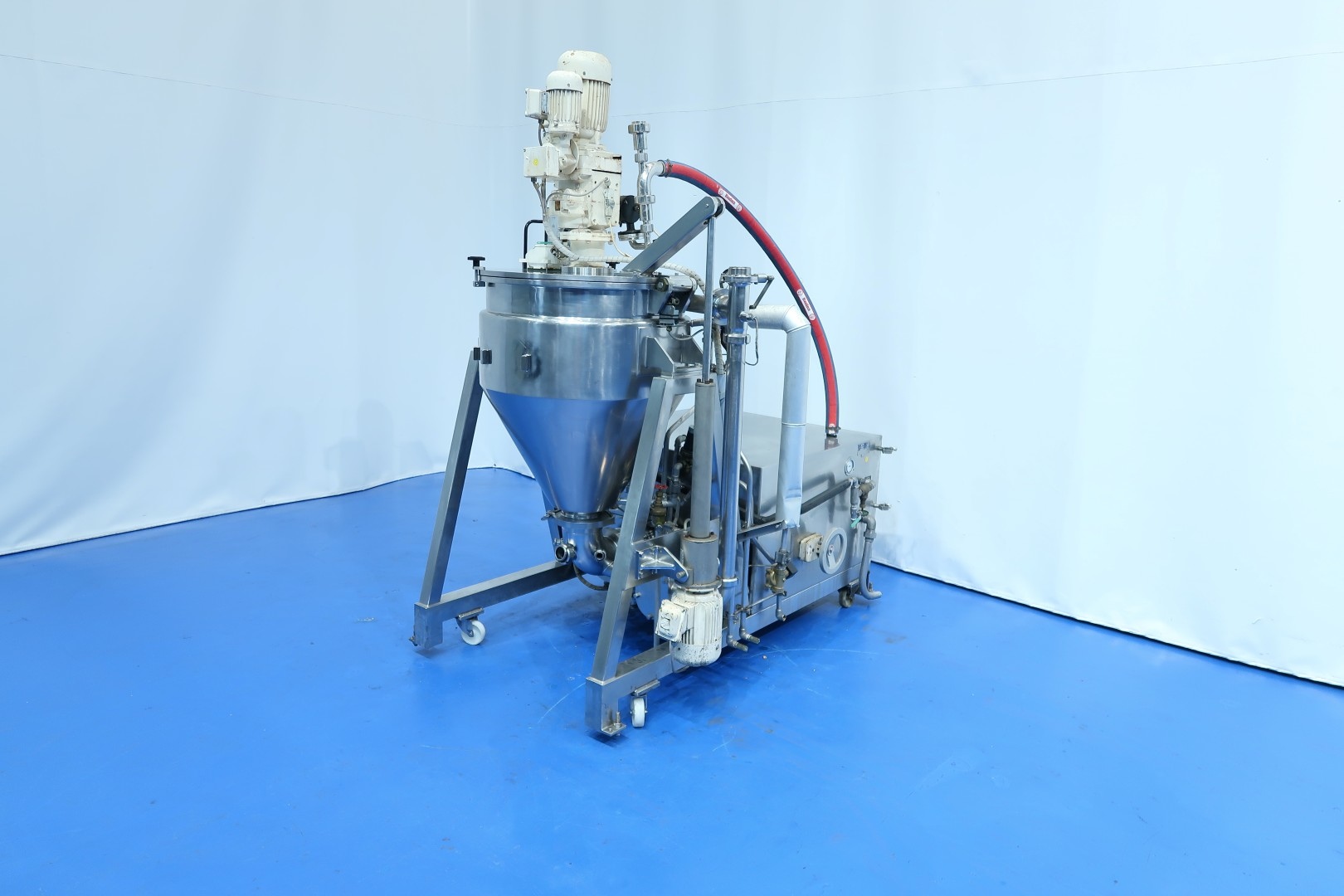

Vacuum batch emulgator with colloïd mill homogenizer.
Suitable to produce emulsions and suspensions in a broad range of viscosities such as mayonnaise, sauces, dressings, ketchup, spreads fillings.
The ingrediënts are fed into the tank by vacuum or directly into the homogenizer (2 direct inlet connections on the head).
There is a circulation system through the recirculation line from where product is circulated over the emulgator and vacuum tank.
The vacuum tank has a top driven special centered scraper agitator (motor 2,2 kW) to prevent adhesion to the wall, to ensure good mixing and to support the transfer of heat when heating or cooling on the jacket.
Total volume product zone: ca. 240 liter - usable product volume 150 liter. Pressure vacuum -1/ambient 0 bar. Material: stainless steel. The tank has a double jacket volume ca.: 30 ltr, working pressure: ca. 2,5 bar. The cover is electric (0,55 kw) tiltable and has a safety sensor. PT-100 temperature sensor at mill and in outgoing line.

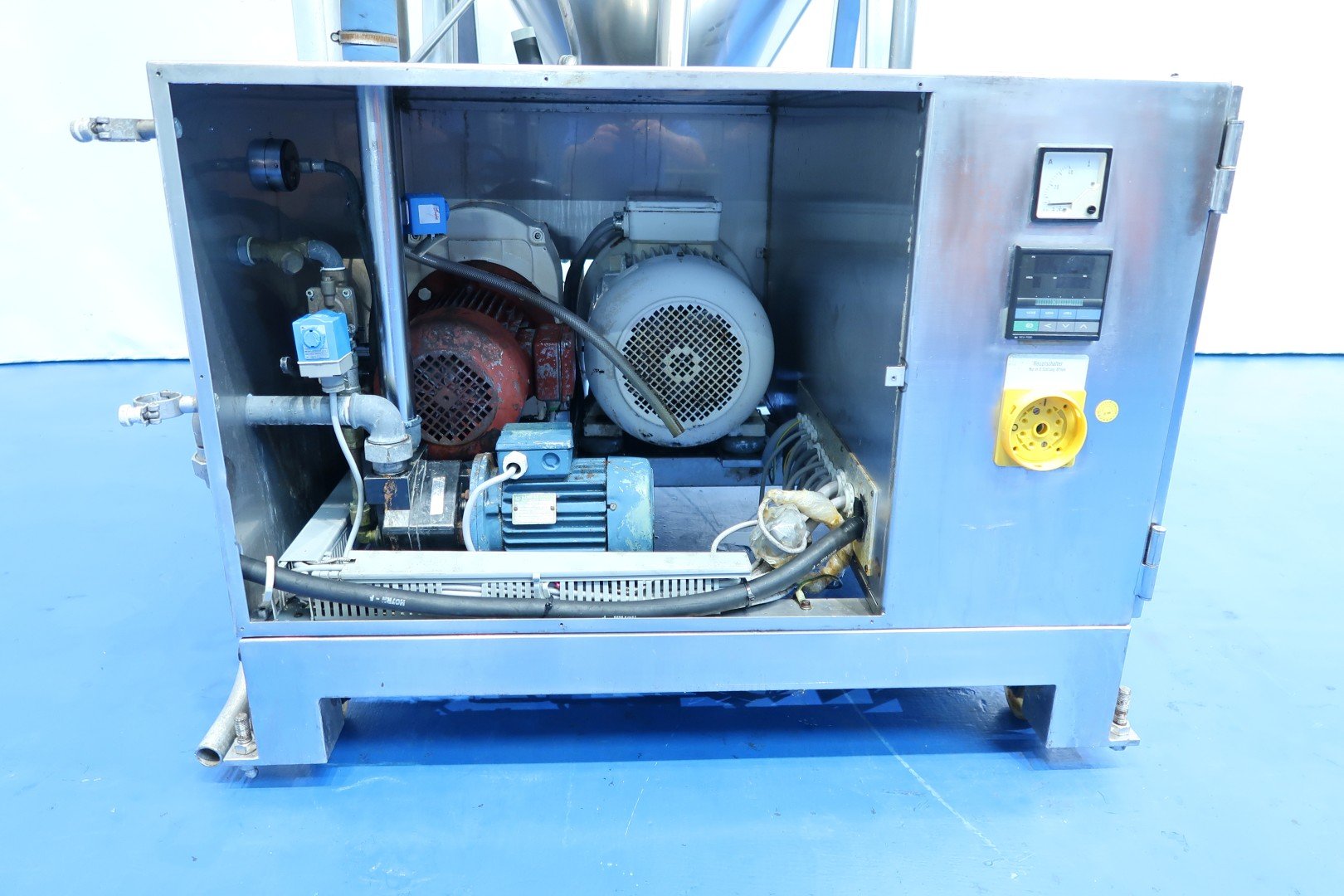

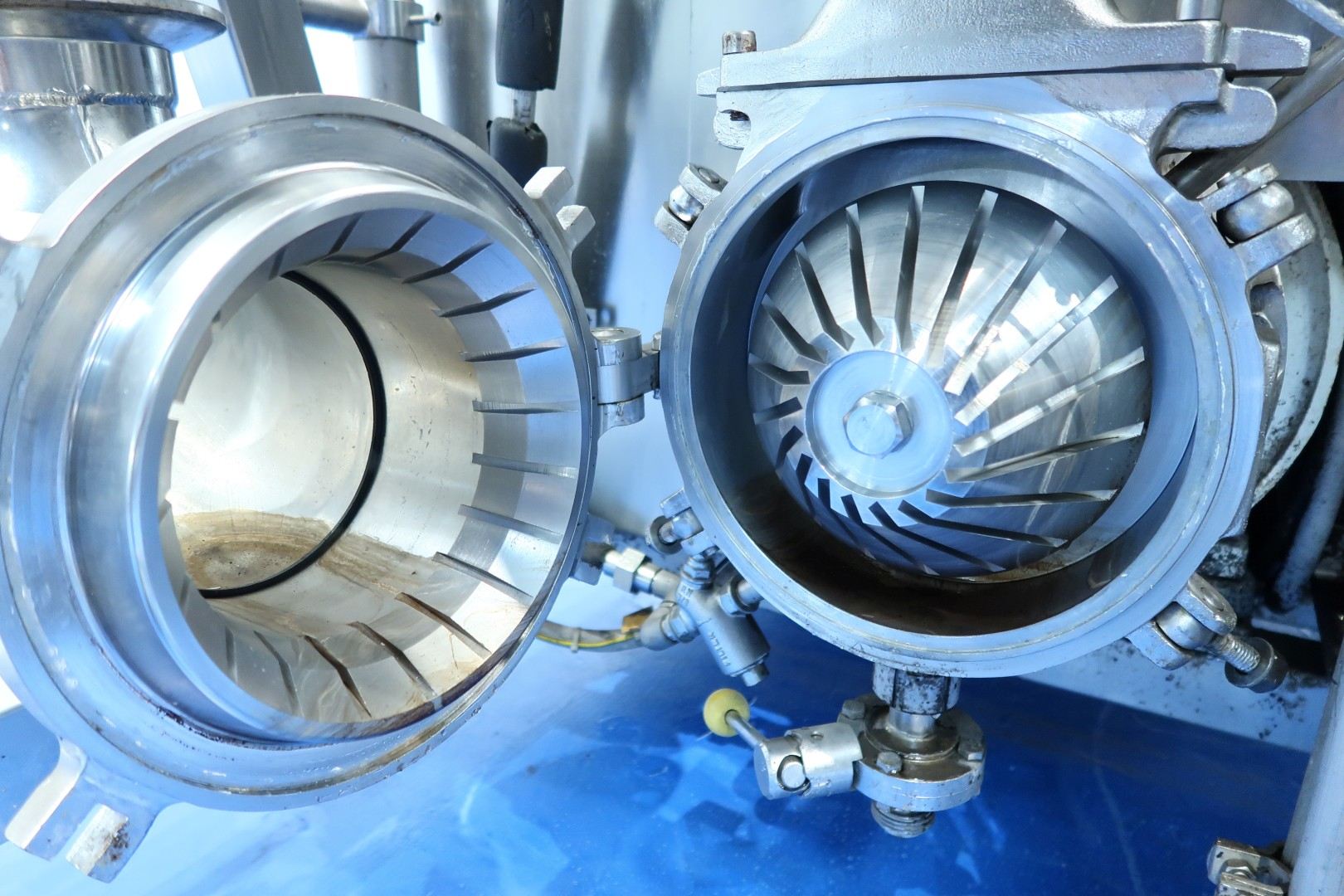

Inline homogenizer with adjustable spline conical rotor 190 - 90 mm. Integrated Vacuum pump 0,75 kW. 2 connections for CIP sprayballs.

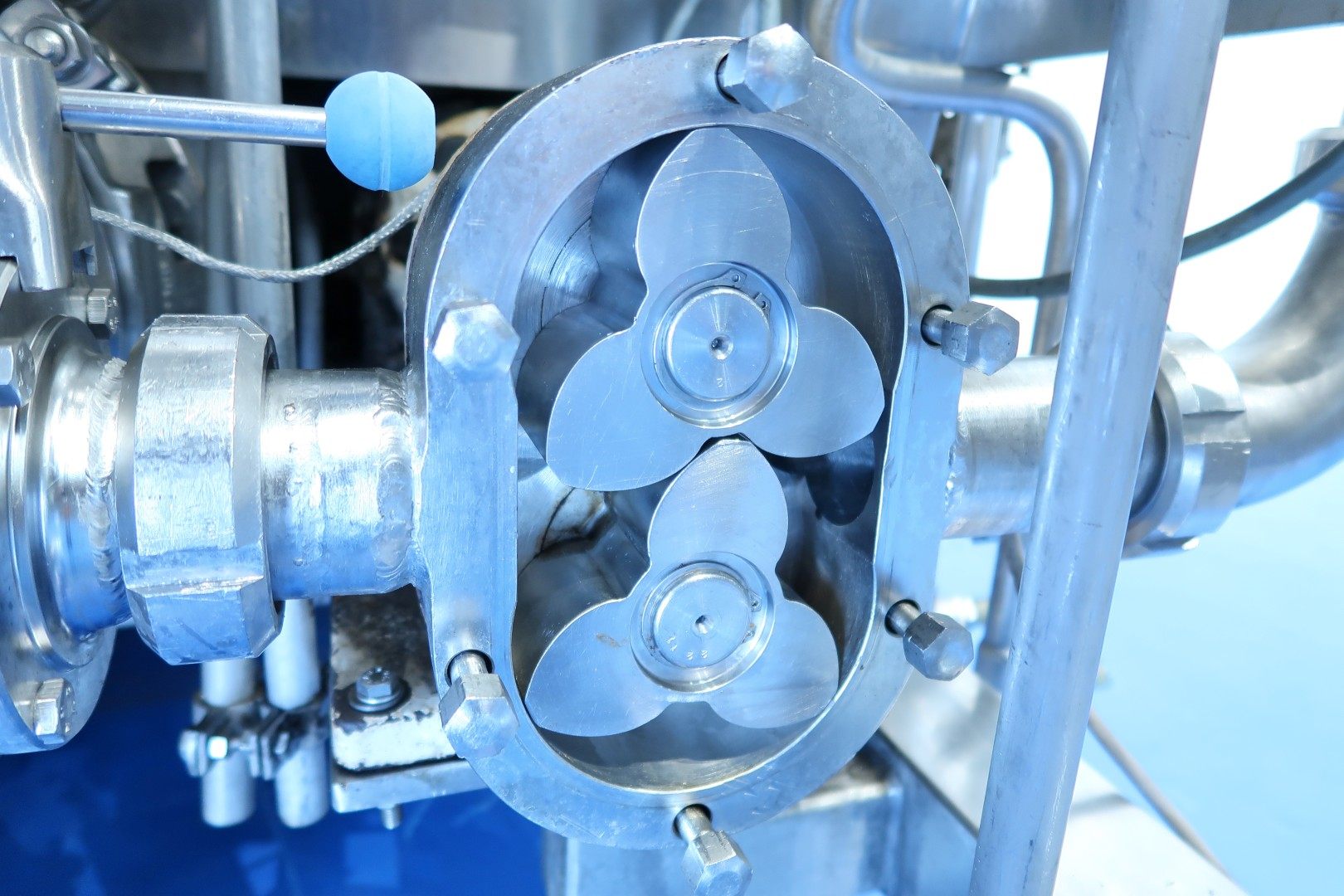

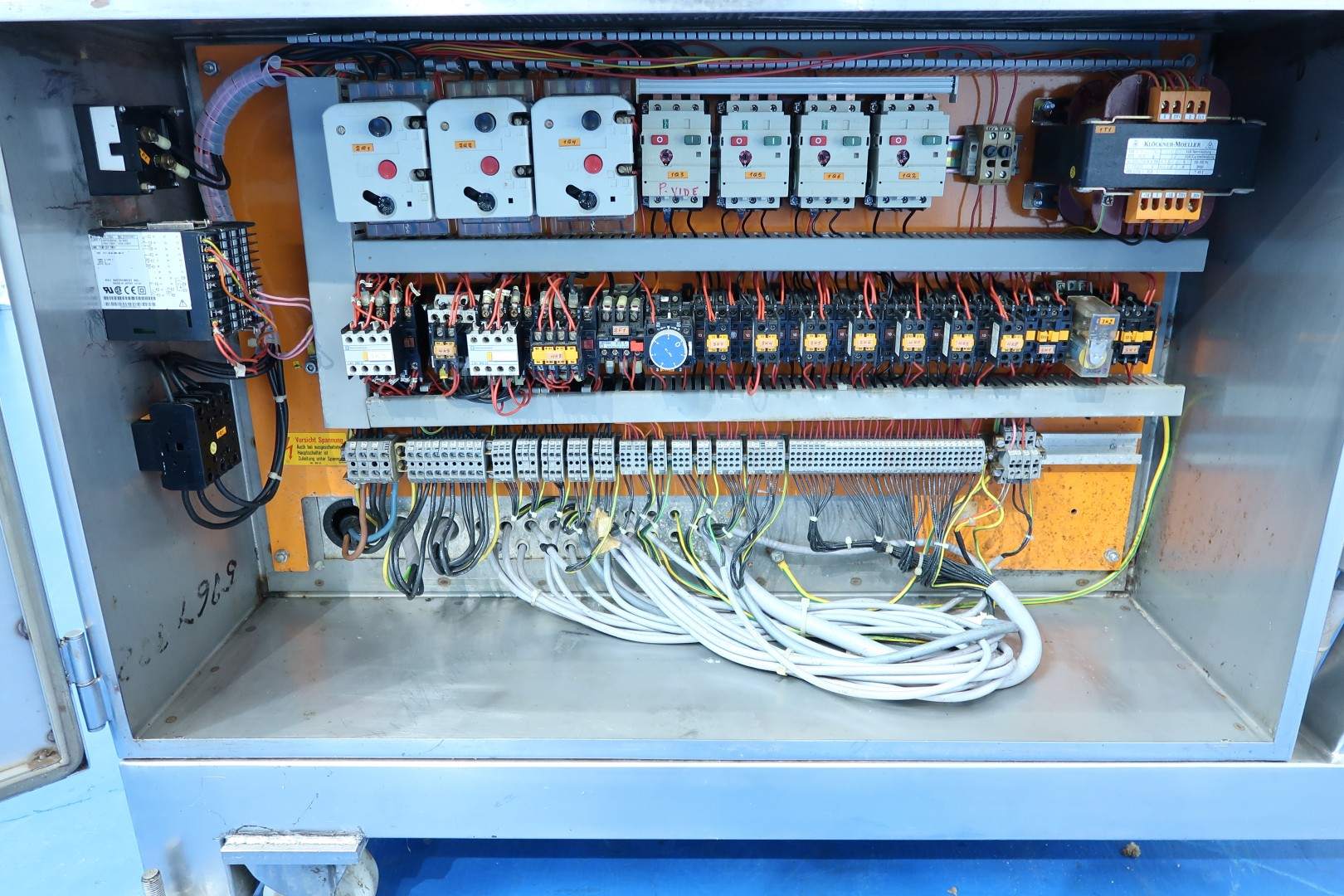

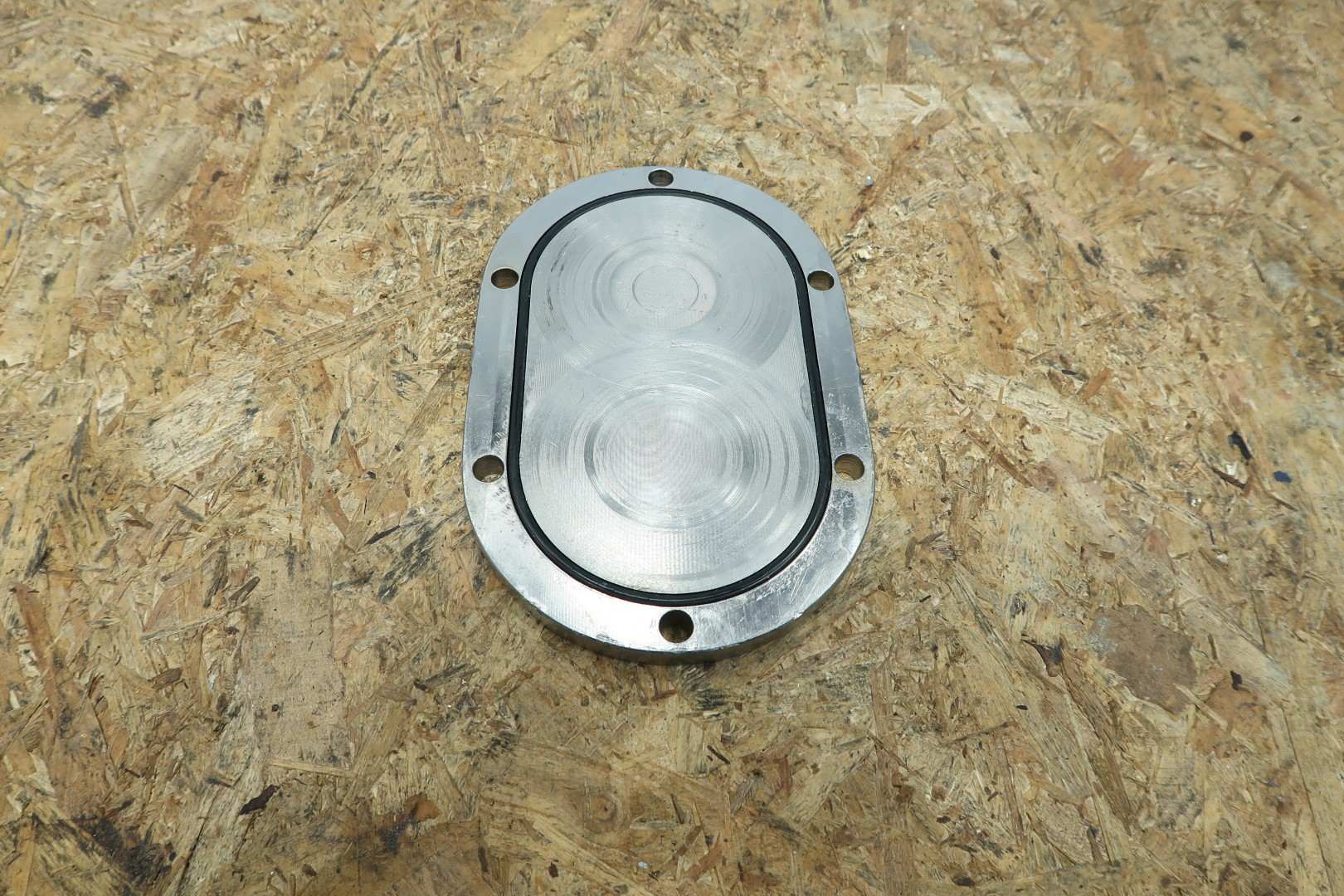

Sight glass with light and wiper in cover. Outfeed lobe pump with manual mechanical reductor (ca. 5.5 kW). Manual butterfly valves on inlet and outlets. Control panel with relay control and with button operation panel on a swingarm). Built on mobile SS frame with adjustable feet. Total Installed power: 3x 380V - 50 Hz - 26 kW - 51,95A.
